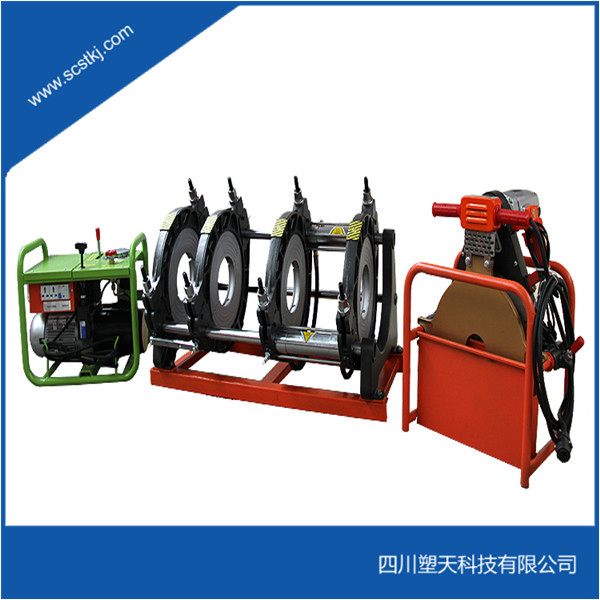

DRBY315 | Includes basic fra me, planing tool, heating plate, hydraulic unit, stand and trolly 包括机架，铣刀，加热板，液压站，附件支架和手推车 |
Fusion Range 焊接范围 | did mm: 160180 200 225 250 280 315 | Package(mm)包装 |
Butting Deviation 对接误差 | ≤ 0.3mm | Basic Frame 主机 | Wooden Case 木箱 1010X665X 550 |
Temperature Deviation 温度误差 | ±3°C | Hydraulic Unit 液压站 | Wooden Case 木箱 730X645 X 680 |
Total Section of Cylinders 油缸总面积 | 22.02CM² | | |
Heating plate Max Temperature加热板最高温度 | 299°C | G.W.毛重 ( Total总重） | 189KG |
Operation Pressure Range 工作压力 | 0-4.5MPa | Power(W)功率 |
Applicable Material 适用材料 | PEPP-RPBPVDF | Heating Plate 加热板 | 2.8KW/220V |
Ambient Temperature 环境温度 | -5- *40°C | Planing Tool 铣刀 | 1.1KW/220V |
Required Time for Welding Temperature
达到焊接温度所需时间 | < 20min | Hydraulic Unit 液压站 | 0.75KW/220V |
|
|
